RhinoGuard^TM

Outrigger Pads

Prevent accidents, protect your equipment, and keep crews safe with RhinoGuard™ Outrigger Pads.

When heavy equipment is at work, stability isn’t optional—it’s critical. But choosing the wrong outrigger pad size can lead to equipment instability, ground damage, or safety violations. RhinoGuard™ Outrigger Pads provide a dependable foundation for cranes, aerial lifts, concrete pumps, utility trucks, and other machinery that rely on outriggers. Built from durable materials and precision-engineered for long service life, our pads protect both your equipment and the ground beneath it.

The challenge? Determining the right pad size for your specific load and ground conditions.

Find the Right Pad Size in Seconds

Get instant engineering recommendations based on your equipment load, ground conditions, and safety requirements.

The challenge? Determining the right pad size for your specific load and ground conditions.

Why Outrigger Pads Matter

Operating heavy equipment without the right ground support can lead to costly accidents, equipment damage, or unsafe working conditions.

Distribute Load – Spread weight across a larger surface area.
Protect Surfaces – Prevent damage to soil, turf, asphalt, and concrete.
Increase Safety – Reduce tipping risk and downtime.
Stay Compliant – Support OSHA and MSHA requirements.

Shop Composite Pads Shop Wood Pads

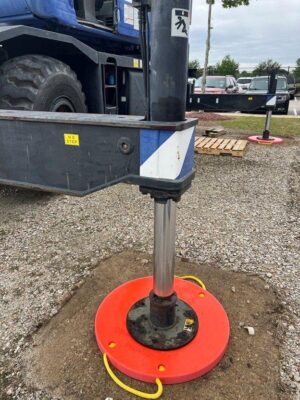

Composite Outrigger Pads

Our composite pads deliver exceptional strength-to-weight performance. Manufactured from high-density engineered thermoplastic, they are lighter than steel yet built to withstand extreme loads.

Benefits:

High load-bearing capacity with minimal deflection
Non-conductive, safe for utility & electrical work
Weather- and chemical-resistant
Lightweight for easier handling

1" Pads

Model	WxLxH (in)	Approx Area (sq ft)	Weight (lbs)	Working Load Limit (lbs)
P151510	15x15x1	1.6	8	48,000
P151510-O	15x15x1	1.6	8	48,000
P181810	18x18x1	2.3	11	55,000
P181810-O	18x18x1	2.3	11	55,000
P242410	24x24x1	4	20	60,000
P242410-O	24x24x1	4	20	60,000
P303010	30x30x1	6.3	31	81,000
P303010-O	30x30x1	6.3	31	81,000
P363610	36x36x1	9	45	93,000
P363610-O	36x36x1	9	45	93,000
P484810	48x48x1	16	80	110,000
P484810-O	48x48x1	16	80	110,000

2" Pads

Model	WxLxH (in)	Approx Area (sq ft)	Weight (lbs)	Working Load Limit (lbs)
P181820	18x18x2	2.3	23	70,000
P181820-O	18x18x2	2.3	23	70,000
P242420	24x24x2	4	40	80,000
P242420-O	24x24x2	4	40	80,000
P303020	30x30x2	6.3	62	95,000
P303020-O	30x30x2	6.3	62	95,000
P363620	36x36x2	9	90	110,000
P363620-O	36x36x2	9	90	110,000
PR4820	48x48x2	12.3	123	130,000
PR4820-O	48x48x2	12.3	123	130,000
P484820	48x48x2	16	160	140,000
P484820-O	48x48x2	16	160	140,000

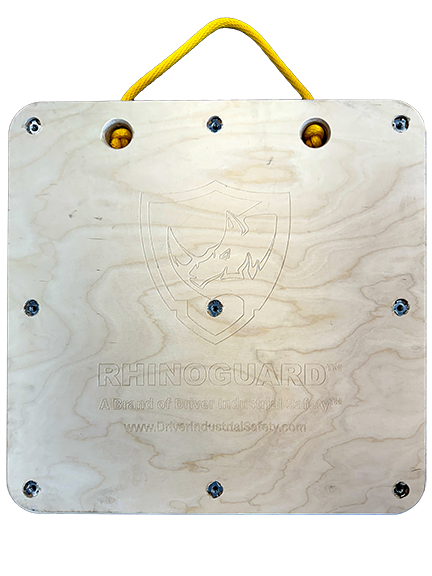

Wood Outrigger Pads

A traditional solution trusted by operators for decades, wood pads provide reliable stability at an economical price. Constructed from premium laminated hardwood, these pads are a cost-effective option for everyday use.

Benefits:

Economical and proven
Laminated for durability
Multiple sizes & thicknesses
Ideal for general construction and utilities

2" Pads

Model	WxLxH (in)	Approx Area (sq ft)	Weight (lbs)	Working Load Limit (lbs)
W181820	18x18x2	2.3	17	40,000
W242420	24x24x2	4	30	40,000
W303020	30x30x2	6.3	50	40,000
WR3620	36x36x2	6.9	70	40,000
W363620	36x36x2	9	90	40,000
WR4820	48x48x2	12.3	123	40,000
W484820	48x48x2	16	160	40,000

3" Pads

Image	Model	WxLxH (in)	Approx Area (sq ft)	Weight (lbs)	Working Load Limit (lbs)
	W181830	18x18x3	2.3	22	80,000
	W242430	24x24x3	4	40	80,000

Composite vs. Wood Pads

Not sure which option is right for you?

Feature	Composite Pads	Wood Pads
Weight	Lightweight	Heavier
Lifespan	Long-lasting	Shorter
Resistance	Chemical- & weather-resistant	Can absorb moisture, splinter
Price	Higher upfront cost	Lower upfront cost
Best For	Heavy use, utilities, fleets	Everyday construction & budget-conscious buyers

Read our blog → Composite vs. Wood Pads: Which Is Right for Your Fleet?

Outrigger Pads vs. Wood Planks

Wood planks may seem like a quick solution, but they carry risks:

No rated load capacity = unpredictable performance
Splintering or breakage under heavy loads
Non-compliant with OSHA/MSHA safety guidelines

RhinoGuard pads are engineered, tested, and designed for the job.

Read our blog → Why Outrigger Pads Are Safer Than Wood Planks

How to Choose the Right Pad

Load Requirements – Match pad capacity to your maximum outrigger load.
Ground Conditions – Softer ground may require larger pads.
Safety Factor – Critical multiplier in pad sizing calculations; higher factors require thicker pads for safe operation.

Formula: Required Area = (Max Load × Safety Factor) ÷ Ground Pressure

Use our Outrigger Pad Selection Tool to calculate the right pad for your needs.
